Protocol Diagrams

This section contains visual diagrams that illustrate the architecture, flows, and key concepts of the Noderr Protocol.

Core Architecture Diagrams

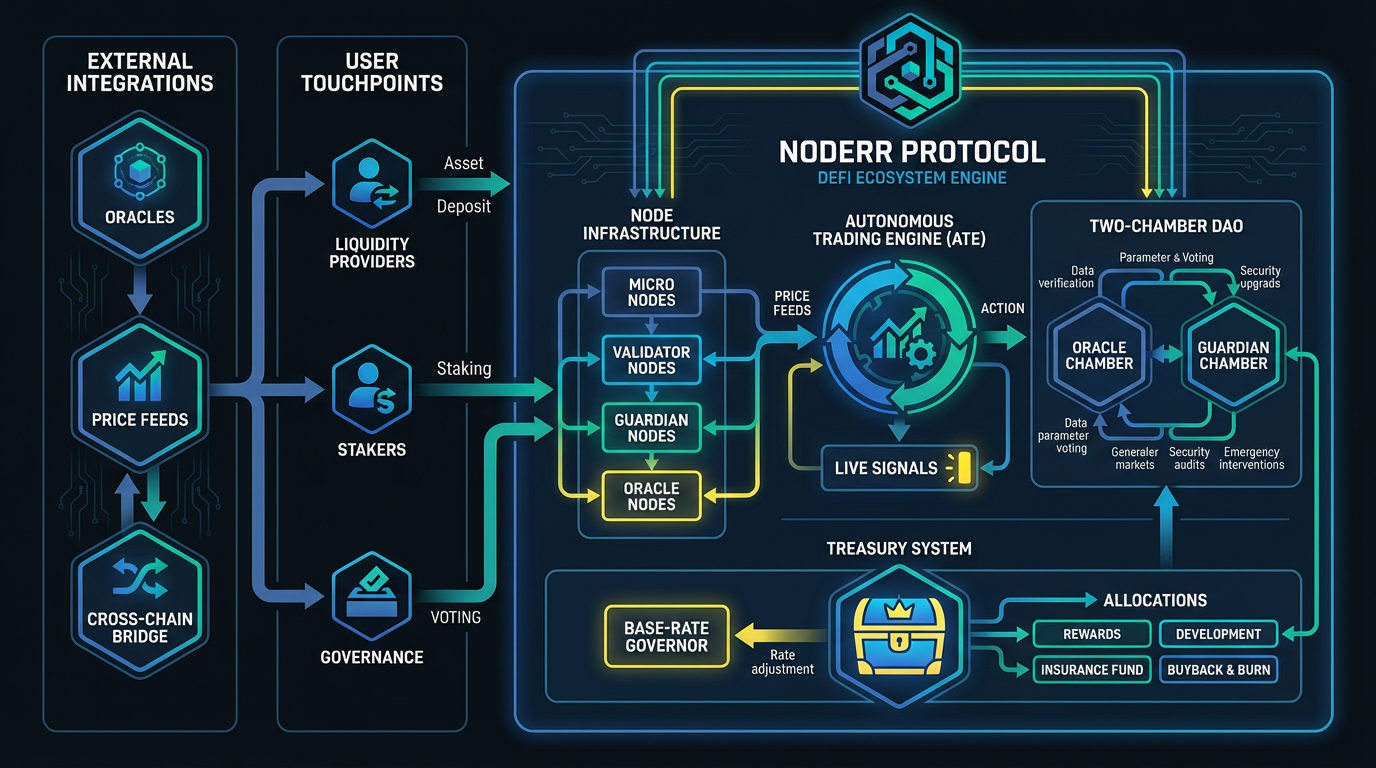

Ecosystem Overview

Complete system architecture showing how all components of the Noderr Protocol interact, including the Autonomous Trading System, node network, governance, and user interfaces.

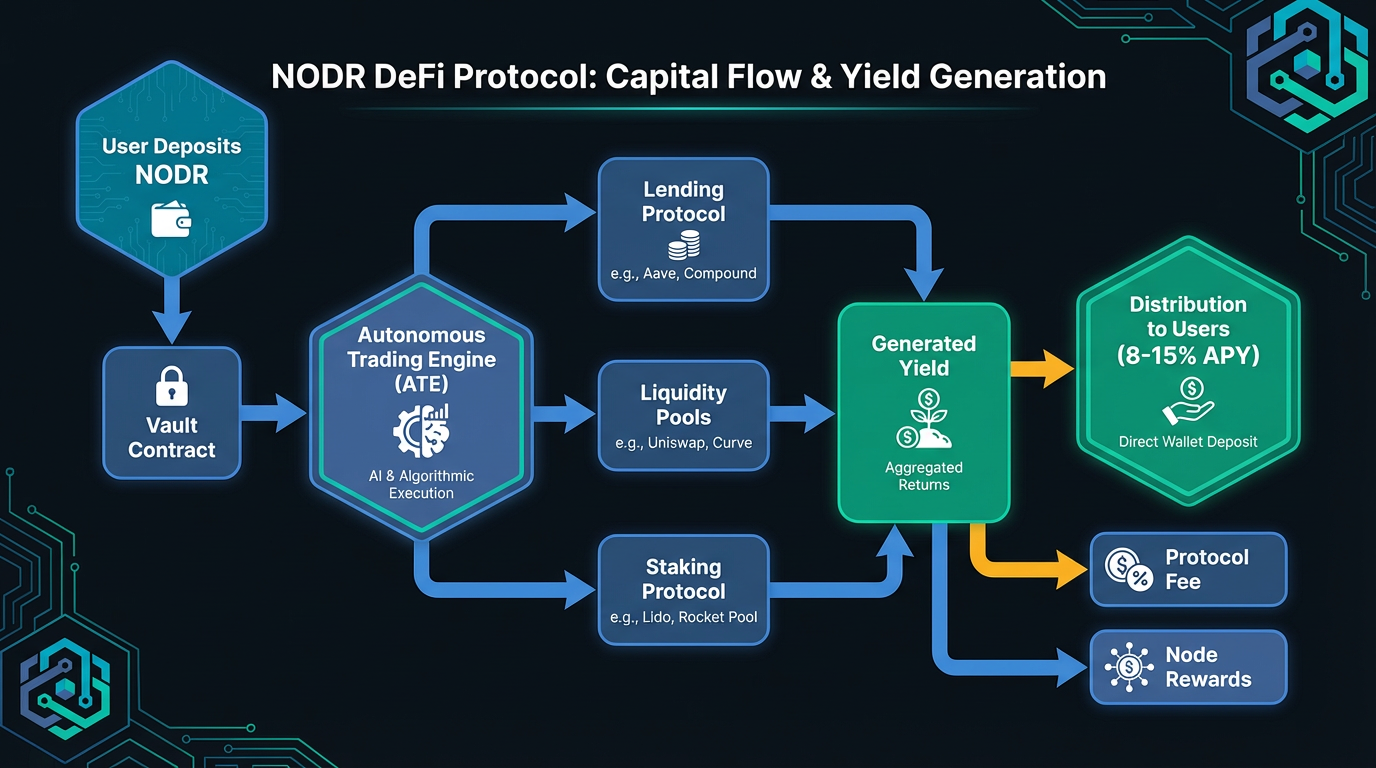

Capital Flow

Illustrates how funds move through the Noderr Protocol ecosystem, from user deposits through the Autonomous Trading System (ATS) and back to users as yields.

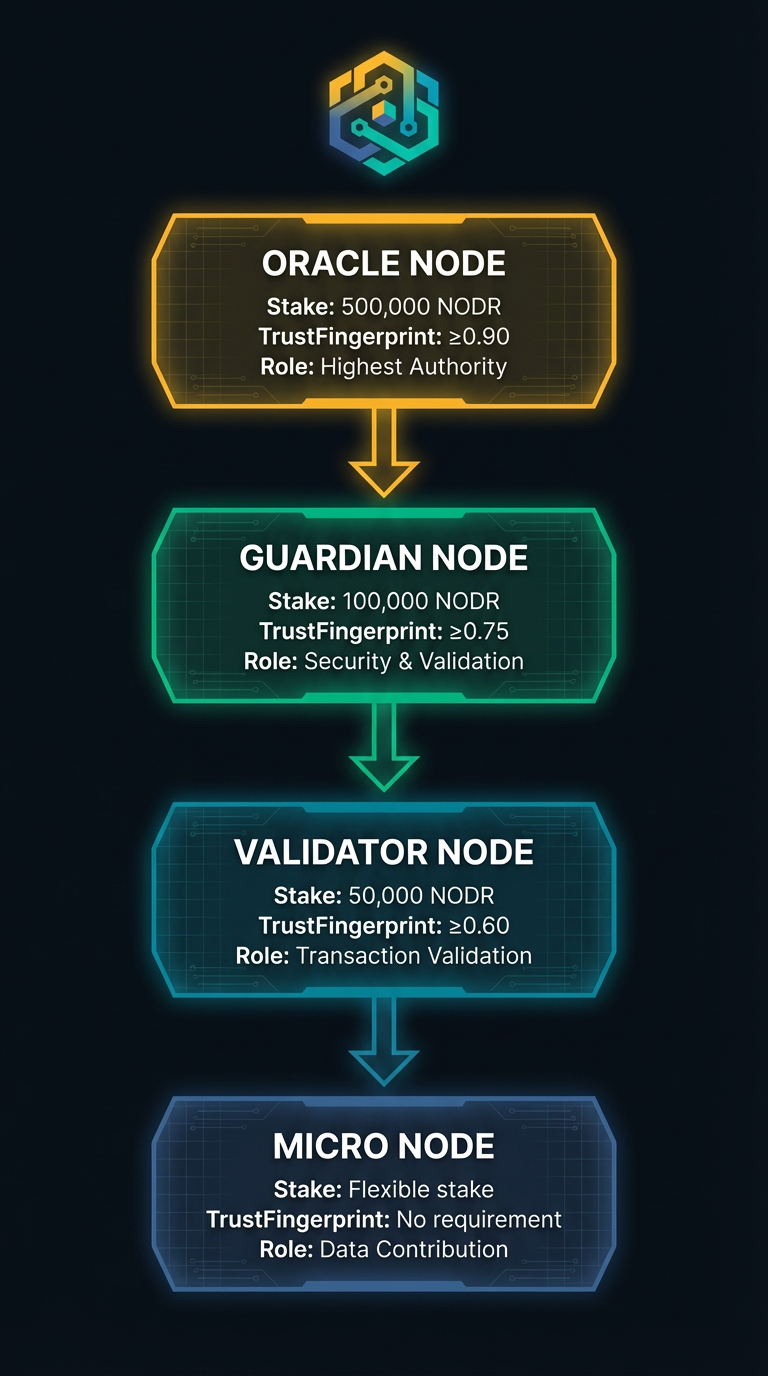

Node Tier Hierarchy

The four-tier node structure of the Noderr Protocol:

Micro Nodes - Entry-level participation
Validator Nodes - Core consensus and validation
Guardian Nodes - Security and monitoring
Oracle Nodes - Governance and strategic decisions

Governance & Economics

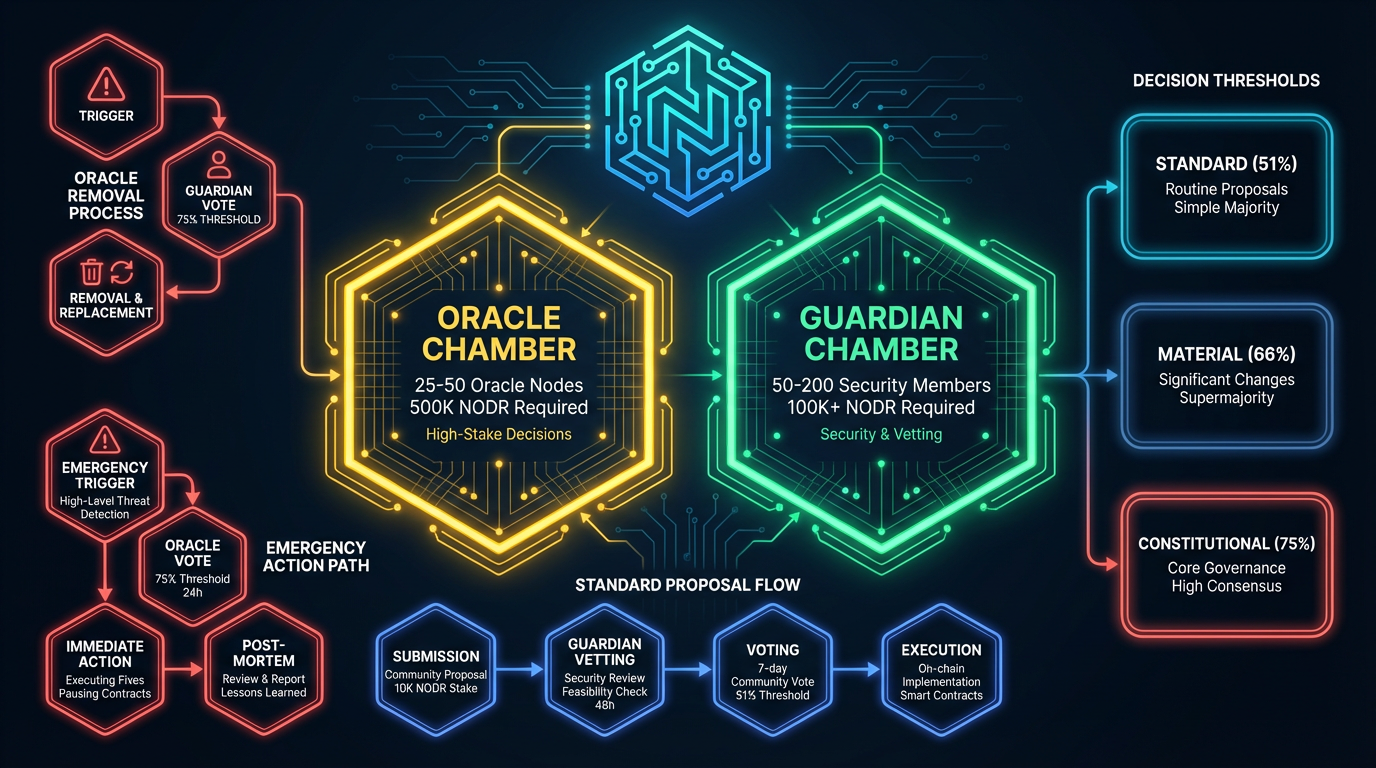

Two-Chamber Governance

The dual-chamber governance structure that balances token-weighted voting with reputation-based decision making through the TrustFingerprint™ system.

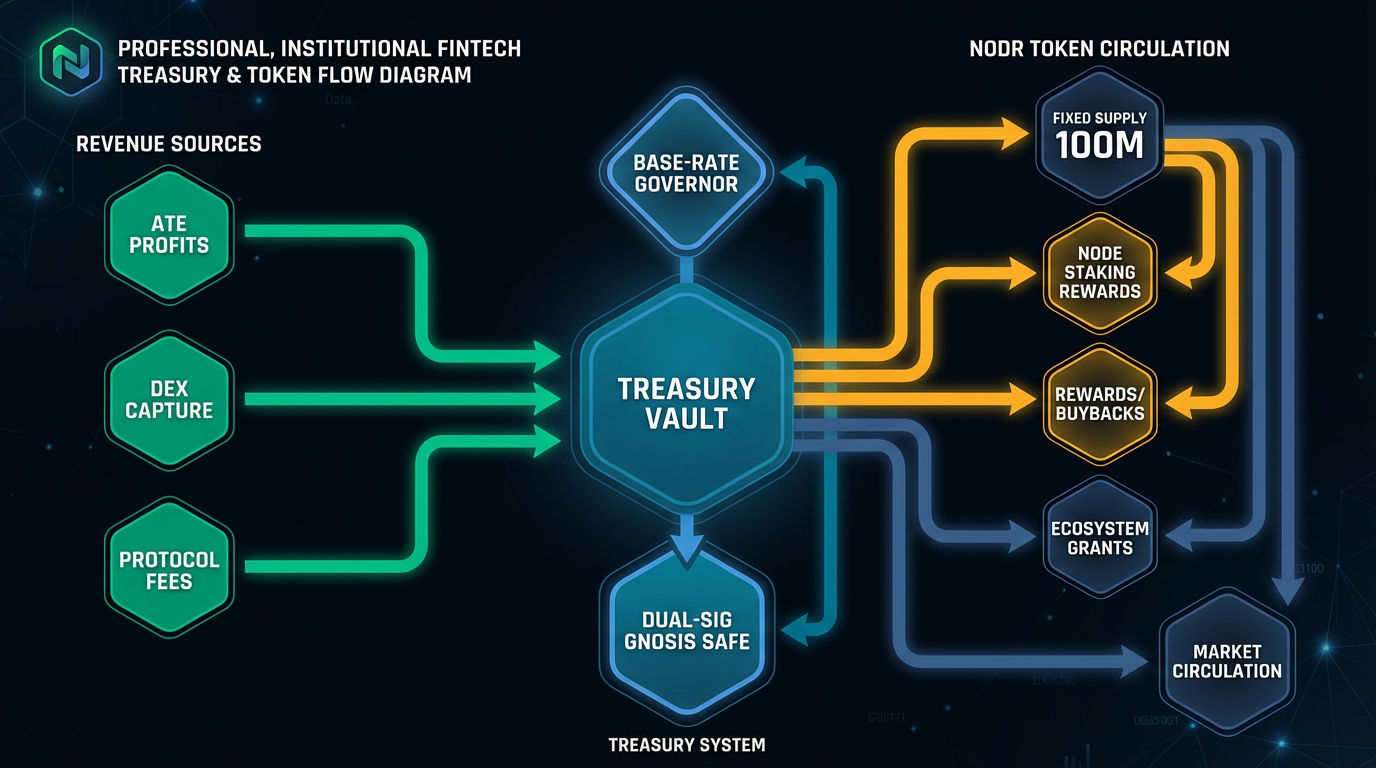

Treasury & Token Flow

Tokenomics and value distribution showing how NODR tokens flow through the ecosystem, including staking rewards, treasury management, and buyback mechanisms.

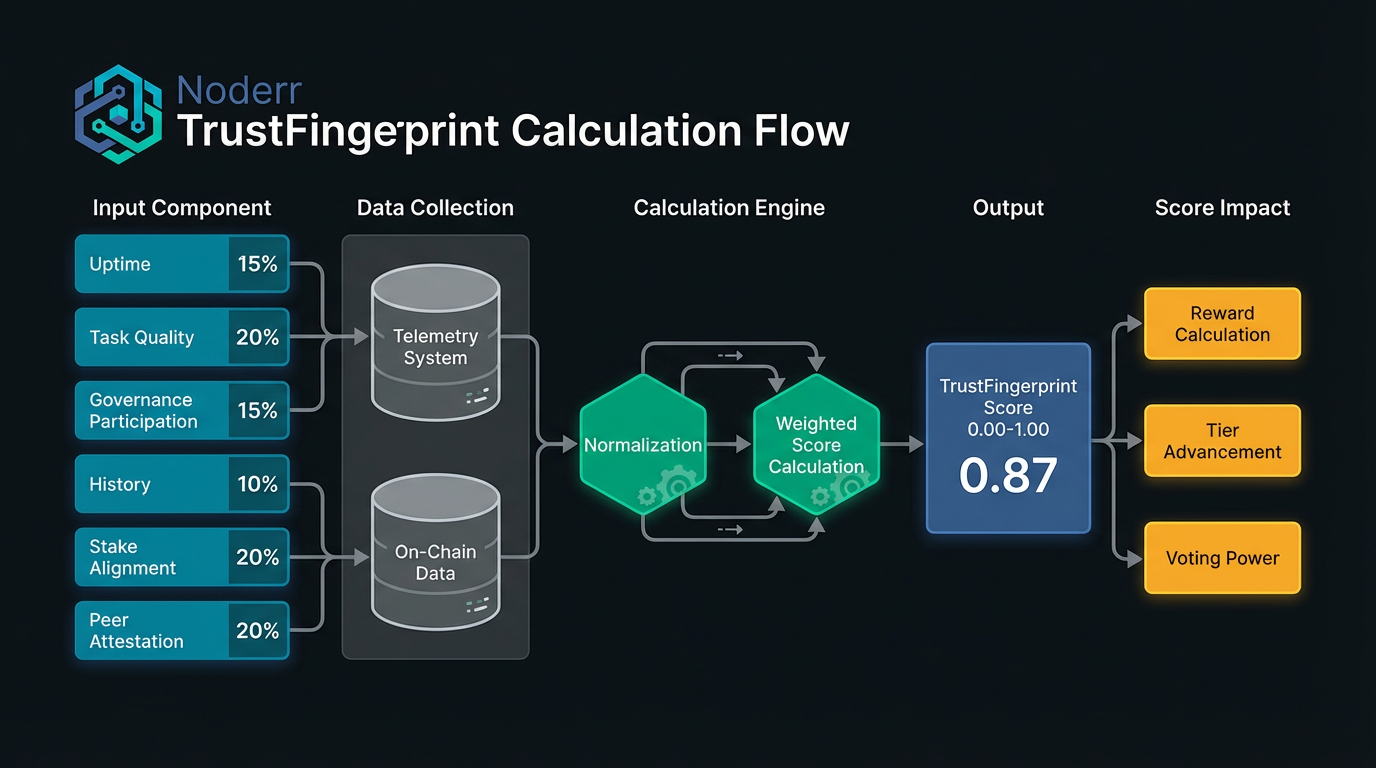

TrustFingerprint™ Calculation

The reputation scoring system that evaluates node operators based on on-chain activity, governance participation, and network contributions.

Security

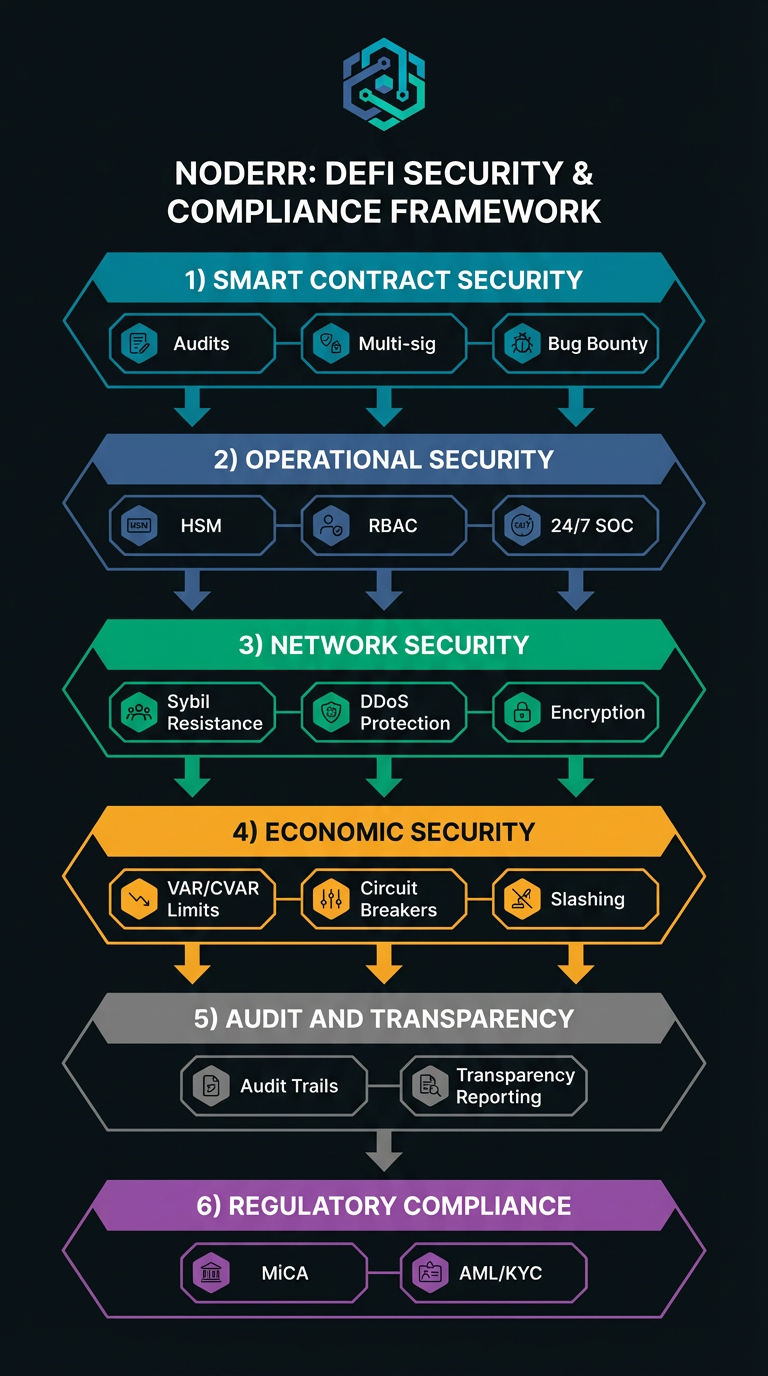

Security & Compliance

Security architecture including smart contract audits, multi-signature controls, emergency procedures, and compliance frameworks.
